TOOLS FOR :

MECHANICS

MEASURING/FASTENING/FINISHING

All Prices Are In Singapore Dollars

*	Forged from Chrome-Vanadium alloy steel
*	Satin finish for corrosion protection

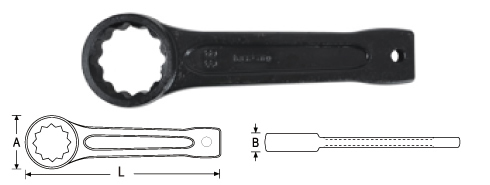

	RING SLOGGING WRENCHES (MM)
		Size	A	B	L	N.W
	Code	(mm)	(mm)	(mm)	(mm)	(kg)	Price
	3000-7041	41	66	20	230	0.68	40.00
	3000-7046	46	74	22	240	0.89	50.00
	3000-7050	50	80	24	255	1.13	60.00
	3000-7055	55	86	25	270	1.33	76.00
	3000-7060	60	93	26	280	1.55	90.00
	3000-7065	65	102	30	300	1.87	94.00
	3000-7070	70	110	33	320	2.36	102.00
	3000-7075	75	110	33	330	2.74	108.00
	3000-7080	80	126	36	360	3.67	140.00
	3000-7085	85	126	36	360	3.71	150.00
	3000-7090	90	142	40	390	5.85	174.00
	3000-7095	95	142	40	390	5.85	180.00
	3000-7100	100	155	45	420	6.45	220.00
	3000-7105	105	155	45	420	6.55	240.00
	3000-7110	110	170	48	450	>8.0	260.00

	RING SLOGGING WRENCHES (MM)
		Size	A	B	L	N.W
	Code	(mm)	(mm)	(mm)	(mm)	(kg)	Price
	3000-7115	115	170	48	450	8.3	280.00
	3000-7120	120	182	54	480	9.0	320.00
	3000-7125	125	182	54	480	8.9
	3000-7130	130	202	58	480	13.5
	3000-7135	135	202	58	520	13.2
	3000-7140	140	202	58	520	13.0
	3000-7145	145	228	62	580	17.76
	3000-7150	150	228	62	580	17.2
	3000-7155	155	228	62	580	16.1
	3000-7160	160	228	62	580	16.1
	3000-7165	165	260	70	630	23.0
	3000-7170	170	260	70	630	13.0
	3000-7175	175	260	70	630	22.5
	3000-7180	180	260	70	630	22.0

	RING SLOGGING WRENCHES (MM)
		Size	A	B	L	N.W
	Code	(mm)	(mm)	(mm)	(mm)	(kg)	Price
	3000-7024	24	43	15	165	0.27	20.00
	3000-7027	27	46	16	180	0.34	22.00
	3000-7030	30	52	17	190	0.44	24.00
	3000-7032	32	52	17	190	0.42	26.00
	3000-7035	35	56	18	200	0.51	30.00
	3000-7036	36	58	20	205	0.56	30.00
	3000-7038	38	62	20	210	0.62	40.00

*	Forged from Chrome-Vanadium alloy steel
*	Satin finish for corrosion protection

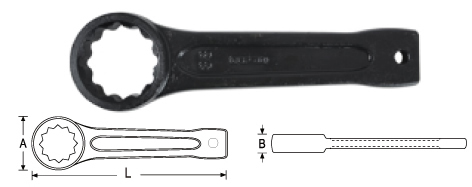

	RING SLOGGING WRENCHES (INCH)
		Size	A	B	L	N.W
	Code	(inch)	(mm)	(mm)	(mm)	(kg)	Price
	3000-8035	1-3/8"	58	19	205	0.56	45.00
	3000-8036	1-7/16"	58	19	205	0.56	48.00
	3000-8038	1-1/2"	58	19	205	0.56	50.00
	3000-8041	1-5/8"	66	20	230	0.68	52.00
	3000-8042	1-11/16"	66	20	230	0.68	56.00
	3000-8044	1-3/4"	66	20	230	0.68	60.00
	3000-8046	1-13/16"	74	22	240	0.89	64.00
	3000-8047	1-7/8"	74	22	240	0.89	70.00
	3000-8049	1-15/16"	76	22	250	1.01	80.00
	3000-8050	2"	80	24	255	1.13	80.00
	3000-8052	2-1/16"	80	24	255	1.13	80.00
	3000-8054	2-1/8"	80	24	255	1.13	80.00
	3000-8055	2-3/16"	86	25	270	1.33	80.00
	3000-8057	2-1/4"	86	25	270	1.33	80.00
	3000-8059	2-5/16"	86	25	270	1.33	80.00

	RING SLOGGING WRENCHES (INCH)
		Size	A	B	L	N.W
	Code	(inch)	(mm)	(mm)	(mm)	(kg)	Price
	3000-8060	2-3/8"	90	26	280	1.24	80.00
	3000-8061	2-7/16"	90	26	280	1.24	80.00
	3000-8064	2-9/16"	102	30	300	1.87	120.00
	3000-8066	2-5/8"	102	30	300	1.87	120.00
	3000-8068	2-11/16"	105	30	310	2.32	120.00
	3000-8069	2-3/4"	110	33	330	2.98	120.00
	3000-8072	2-7/8"	110	33	330	2.95	120.00
	3000-8073	2-15/16"	110	33	330	2.95	140.00
	3000-8076	3"	110	33	330	2.9	140.00
	3000-8079	3-1/8"	126	36	360	3.67
	3000-8086	3-3/8"	126	36	360	3.71
	3000-8089	3-1/2"	142	40	390	5.85
	3000-8095	3-3/4"	142	40	390	5.35
	3000-8098	3-7/8"	142	40	390	5.35
	3000-8101	4"	155	45	420	6.45

	RING SLOGGING WRENCHES (INCH)
		Size	A	B	L	N.W
	Code	(inch)	(mm)	(mm)	(mm)	(kg)	Price
	3000-8022	7/8"	43	15	165	0.27	20.00
	3000-8024	15/16"	43	15	165	0.27	24.00
	3000-8025	1"	43	15	165	0.27	32.00
	3000-8027	1-1/16"	46	16	180	0.34	32.00
	3000-8029	1-1/8"	46	16	180	0.34	36.00
	3000-8030	1-3/16"	52	17	190	0.44	36.00
	3000-8032	1.1/4"	52	17	190	0.42	36.00
	3000-8033	1-5/16"	52	17	190	0.42	40.00

*	Made of selected alloy steel with the opening size stamped on the head
*	Hardened and chrome plate finished
*	Each head is bent 45° for easier leveraging

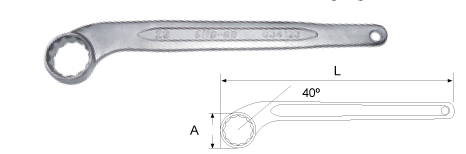

	WRENCH 12-POINT SINGLE END
		A	L	For Bolt Size		N.W
	Code	(mm)	(mm)	Metric	Whitworth	(kg)	Price
	CL-SR12	12	165	-	W1/4	0.07	8.40
	CL-SR13	13	173	M8	-	0.09	10.00
	CL-SR14	14	173	-	W5/16	0.09	10.00
	CL-SR17	17	203	M10	W3/8	0.17	13.00
	CL-SR19	19	215	M12	W7/18	0.19	13.00
	CL-SR21	21	225	-	W1/2	0.21	18.00
	CL-SR22	22	225	M14	-	0.21	18.00
	CL-SR23	23	225	-	W9/16	0.21	18.00
	CL-SR24	24	248	M16	-	0.3	28.00
	CL-SR26	26	260	-	W5/8	0.32	30.00

	WRENCH 12-POINT SINGLE END
		A	L	For Bolt Size		N.W
	Code	(mm)	(mm)	Metric	Whitworth	(kg)	Price
	CL-SR27	27	265	M18	-	0.41	32.00
	CL-SR29	29	290	-	W11/16	0.47	36.00
	CL-SR30	30	290	M20	-	0.47	38.00
	CL-SR32	32	290	M22	W3/4	0.47	40.00
	CL-SR35	35	310	-	W7/8	0.65	44.00
	CL-SR36	36	310	M24	-	0.65	46.00
	CL-SR38	38	345	-	W15/16	0.91	60.00
	CL-SR41	41	345	M27	W1	0.91	64.00
	CL-SR46	46	378	M30	W1-1/8	1.21	52.00

	WRENCH 12-POINT SINGLE END
		A	L	For Bolt Size		N.W
	Code	(mm)	(mm)	Metric	Whitworth	(kg)	Price
	CL-SR10	10	165	M6	-	0.07	8.40
	CL-SR11	11	165	M7	-	0.07	8.40

*	Forged from Chrome-Vanadium alloy steel
*	Satin finish for corrosion protection

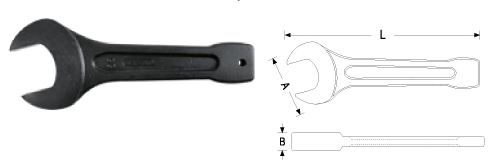

	OPEN END SLOGGING WRENCHES (MM)
		Size	A	B	L	N.W
	Code	(mm)	(mm)	(mm)	(mm)	(kg)	Price
	3100-7030	30	62.3	17	190	0.53	32.00
	3100-7032	32	66.5	17	190	0.55	36.00
	3100-7036	36	74.8	18	210	0.674	40.00
	3100-7041	41	85.2	19	230	1.04	50.00
	3100-7046	46	95.5	21	250	1.224	76.00
	3100-7050	50	80	22	275	1.55	100.00
	3100-7055	55	86	24	302	2.36	110.00
	3100-7060	60	93	26	315	2.85	120.00
	3100-7065	65	102	28	336	3.25	130.00
	3100-7070	70	110	30	367	4	140.00

	OPEN END SLOGGING WRENCHES (MM)
		Size	A	B	L	N.W
	Code	(mm)	(mm)	(mm)	(mm)	(kg)	Price
	3100-7075	70	110	32	384	4.78	150.00
	3100-7080	75	174	34	408	5.8	160.00
	3100-7085	80	174	34	408	5.8	170.00
	3100-7090	85	194	38	445	8.1	180.00
	3100-7095	90	194	38	445	8.1	195.00
	3100-7100	95	215	44	485	10.5	240.00
	3100-7105	100	215	44	485	10.3	250.00
	3100-7110	110	237	48	510	13.5	260.00
	3100-7115	115	237	48	510	13.5	270.00
	3100-7120	120	237	56	570	19.2	280.00

	OPEN END SLOGGING WRENCHES (MM)
		Size	A	B	L	N.W
	Code	(mm)	(mm)	(mm)	(mm)	(kg)	Price
	3100-7014	14	43.5	12	125	0.13	24.00
	3100-7019	19	43.5	12	125	0.13	26.00
	3100-7024	24	52.4	15.5	177	0.328	28.00

*	Forged from Chrome-Vanadium alloy steel
*	Satin finish for corrosion protection

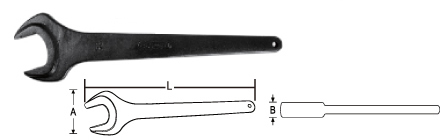

	SINGLE JAW SPANNER HEAVY DUTY FOR HAMMERING (MM)
		Size	A	B	L	N.W
	Code	(mm)	(mm)	(mm)	(mm)	(kg)	Price
	906-724	24	50	12.5	230	0.25	18.00
	906-727	27	62.5	12.8	264	0.35	23.00
	906-730	30	70.5	14.6	284	0.492	28.00
	906-732	32	70.5	14.6	284	0.492	34.00
	906-734	34	70	12	290	0.430	34.00
	906-735	35	83	16.2	317	0.74	48.00
	906-736	36	83	16.2	317	0.74	48.00
	906-738	38	83	16.2	317	0.74	48.00
	906-741	41	86.5	17.5	359	0.97	62.00
	906-746	46	106	19.8	422	1.478	75.00
	906-750	50	106	19.8	422	1.478	104.00

	SINGLE JAW SPANNER HEAVY DUTY FOR HAMMERING (MM)
		Size	A	B	L	N.W
	Code	(mm)	(mm)	(mm)	(mm)	(kg)	Price
	906-755	55	114.5	20.1	456	1.65	135.00
	906-760	60	125	22.3	498	2	135.00
	906-765	65	135	18.5	520	2.5	135.00
	906-770	70	146	18.5	560	2.8	200.00
	906-775	75	156.3	20.5	630	3.65	200.00
	906-780	80	156.3	21.5	630	3.6	200.00
	906-785	85	170	22	680	4	200.00
	906-790	90					260.00
	906-795	95					260.00
	906-7100	100					400.00
	906-7105	105					400.00

	SINGLE JAW SPANNER HEAVY DUTY FOR HAMMERING (MM)
		Size	A	B	L	N.W
	Code	(mm)	(mm)	(mm)	(mm)	(kg)	Price
	906-717	17	38	6	170	0.09	13.00
	906-718	18	38	6	170	0.09	13.00
	906-719	19	38	6	170	0.09	14.00
	906-722	22	40.3	9	203	0.12	18.00

*	Phosphate finish & grinding head type size & item: 4"~24"
*	Results hard surface
*	Remarkable in making laser-etched on wrench head
*	One of the nature surface finish of it's metal body meets the environmental protection
*	Improve the ability of rust resistance, adherence and lubricity from traditional black oxide
*	Smaller head tip allows a constricted space entry easily

*	Socket: Chrome-Vanadium
*	Electroless black nicket

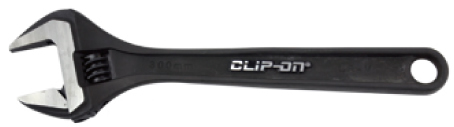

	HEAVY DUTY ADJUSTABLE WRENCH (INCH)
			Wider Max. Jaw	Using Rang For
			Opening Not Less	Metric Hexagon	SAE Hexagon
	Code	Size (inch)	Than (mm)	Nut's Size	Nut's Size	Price
	016.804	4	17	M1 ~ M10	W1/8 ~ W3/8	20.00
	016.806	6	23.9	M1 ~ M16	W1/8 ~ W1/2	20.00
	016.808	8	28.6	M1 ~ M18	W1/8 ~ W5/8	26.00
	016.810	10	32.8	M1 ~ M22	W1/8 ~ W3/4	34.00
	016.812	12	38.1	M1 ~ M24	W1/8 ~ W7/8	40.00
	016.815	15	50	M1 ~ M33	W1/8 ~ W1-1/4	75.00
	016.818	18	60	M1 ~ M39	W1/8 ~ W1-1/2	120.00
	016.824	24	70	M1 ~ M45	W1/8 ~ W1-3/4	280.00

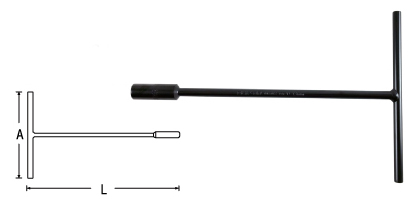

	T SOCKET WRENCH (MM)
	Code	Size (mm)	L (mm)	A (mm)	Price
	016.008	8	300	200	10.00
	016.010	10	300	200	10.00
	016.012	12	300	250	10.60
	016.013	13	300	200	11.00
	016.014	14	300	200	11.00
	016.017	17	300	200	11.60
