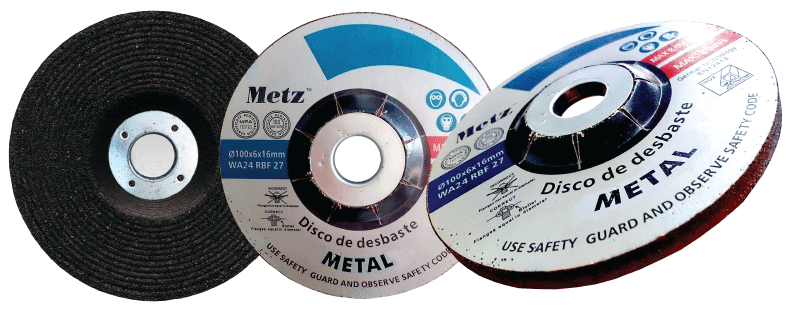

| GRINDING DISC, BLACK COLOR (FOR METAL) |

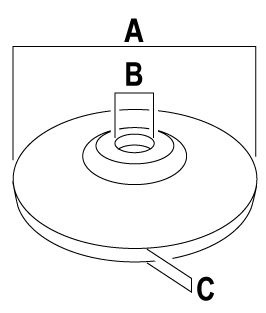

| Code | Inch (A x B x C) | mm (A x B x C) | Max. R.P.M. |
| M6-G50X50 | 2" x 3/16" x 3/8" | 50 x 5.0 x 9.5 | 20,000 |
| M6-G100X30 | 4" x 1/8" x 5/8" | 100 x 3.0 x 16 | 15,300 |
| M6-G100X60 | 4" x 1/4" x 5/8" | 100 x 6.0 x 16 | 15,300 |
| M6-G115X60 | 4" x 1/4" x 5/8" | 115 x 6.0 x 16 | 13,300 |
| M6-G125X60 | 5" x 1/4" x 5/8" | 125 x 6.0 x 22.2 | 12,250 |
| M6-G150X60 | 6" x 1/4" x 5/8" | 150 x 6.0 x 22.2 | 10,250 |
| M6-G180X60 | 7" x 1/4" x 5/8" | 180 x 6.0 x 22.2 | 8,500 |
| M6-G230X60 | 9" x 1/4" x 5/8" | 230 x 6.0 x 22.2 | 6,600 |
|
| |
| Material:Mile steels, with medium strength, plain alloy tool steels, cast material, spring steel sheet-treated steels, reinforcing steel. |
| Application:Chamfer of tubes and profiles, grinding of edges and plains, welds and surfaces. |
| Characteristics:Medium-hand with long life, with reinforced outsid armouring for freehand cutting, easy and fast, cery sharp. |
| Max. Working Speed:80 M/S. |
|  |
|
|
|
 |
|

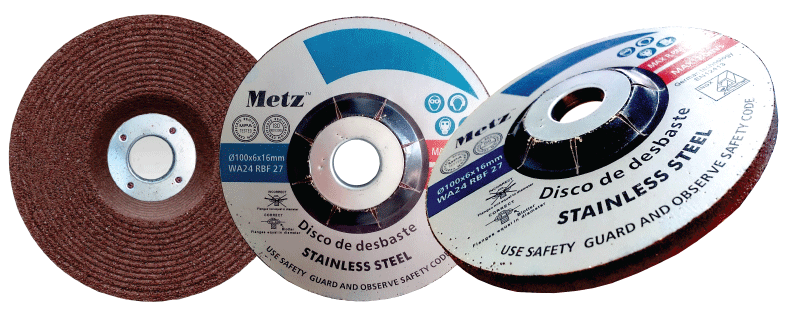

| GRINDING DISC, RED COLOR (FOR STAINLESS STEEL) |
| Code | Inch (A x B x C) | mm (A x B x C) | Max. R.P.M. |
| M6-G100X60S | 4" x 1/4" x 5/8" | 100 x 6.0 x 16 | 15,300 |
| M6-G115X60S | 4-1/2" x 1/4" x 5/8" | 115 x 6.0 x 16 | 13,330 |
| M6-G125X60S | 5" x 1/4" x 7/8" | 125 x 6.0 x 22.2 | 12,250 |
| M6-G150X60S | 6" x 1/4" x 7/8" | 150 x 6.0 x 22.2 | 10,200 |
| M6-G180X60S | 7" x 1/4" x 7/8" | 180 x 6.0 x 22.2 | 8,500 |
| M6-G230X60S | 9" x 1/4" x 7/8" | 230 x 6.0 x 22.2 | 6,600 |
|
| Material:All kind of material, as steels, stainless steel, hanrdened steels, constructional steels, concrete reinforcing iron, cast steels, grey cast, tool steels, mild steels, allay steels, heat-treated steels, spring steels. |
| Application:Cutting of solid materials, tubes, profiles and sheet metal, grinding of edges, welda and surfaces. |
| Characteristics:Medium-hand with long life, with reinforced outsid armouring for freehand cutting, easy and fast, cery sharp. |
| Max. Working Speed:80 M/S. |
| |
| |
| |
 |
|
| Material:All kind of material, as steels, stainless steel, hanrdened steels, constructional steels, concrete reinforcing iron, cast steels, grey cast, tool steels, mild steels, allay steels, heat-treated steels, spring steels. |
| Application:Cutting of solid materials, tubes, profiles and sheet metal, grinding of edges, welda and surfaces. |
| Characteristics:Medium-hand with long life, with reinforced outsid armouring for freehand cutting, easy and fast, cery sharp. |
| Max. Working Speed:80 M/S. |
|

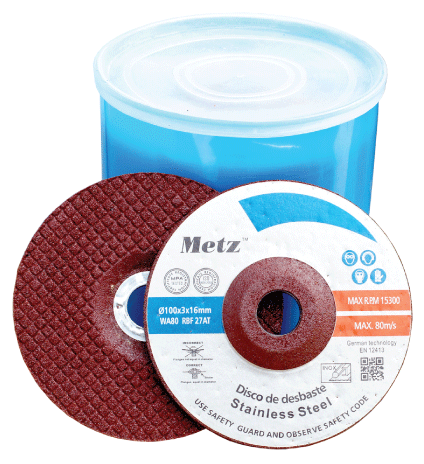

| FLEXIBLE DISC, RED COLOR (FOR STAINLESS STEEL CUTTING AND GRINDING) |
| Code | Inch (A x B x C) | mm (A x B x C) | Max. R.P.M. |
| M6-GWA80 | 4" x 1/8" x 5/8" | 100 x 25 x 16 | 15,300 | |
| |
| |
 |
 |
|

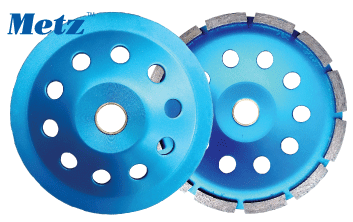

| DIAMOND CUP WHEEL, SINGLE ROW |
| Code | Size |
| M6-CUP-04A | 4" |
| M6-CUP-05A | 5" |
| M6-CUP-06A | 6" |
| M6-CUP-07A | 7" |
| M6-CUP-09A | 9" |
|

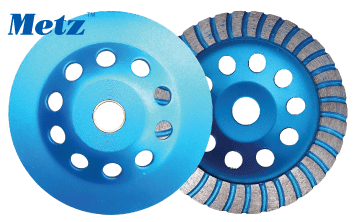

| DIAMOND CUP WHEEL, TURBO ROW |
| Code | Size |
| M6-CUP-T04A | 4" |
| M6-CUP-T05A | 5" |
| M6-CUP-T06A | 6" |
| M6-CUP-T07A | 7" |
| M6-CUP-T09A | 9" |
| |
| | |
