LOCKING PLIERWATER PUMP PLIERADJUSTABLE WRENCHHEAVY DUTY PIPE WRENCH

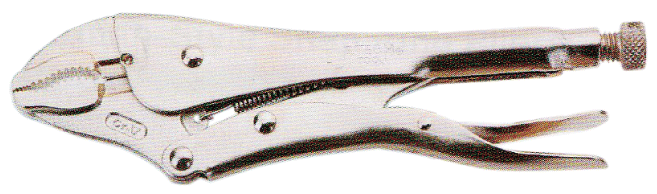

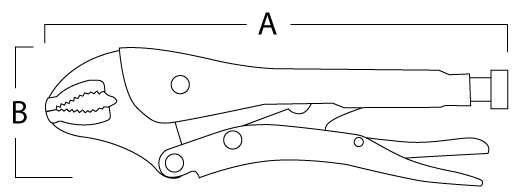

METZ LOCKING PLIER (CURVED JAW)
CodeA (Inch)B (mm)
M9-LP-055"40
M9-LP-077"52
M9-LP-1010"64

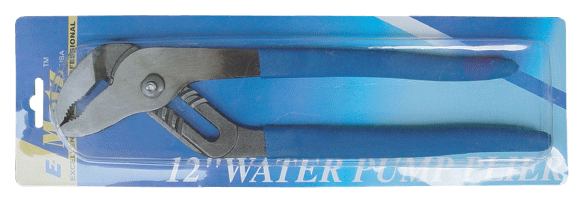

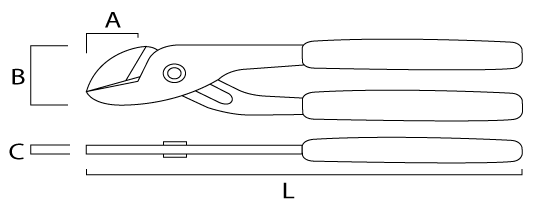

METZ WATER PUMP PLIER
CodeA x B x C (mm)L (Inch)
M9-WP-0624.5 x 24.5 x 6.56"
M9-WP-0840.0 x 35.5 x 8.58"
M9-WP-1045.5 x 38.0 x 11.510"
M9-WP-1251.0 x 43.0 x 12.012"
M9-WP-1680.5 x 59.0 x 12.516"

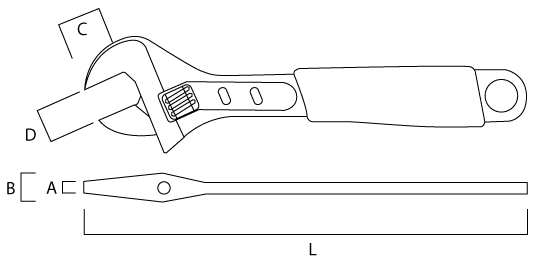

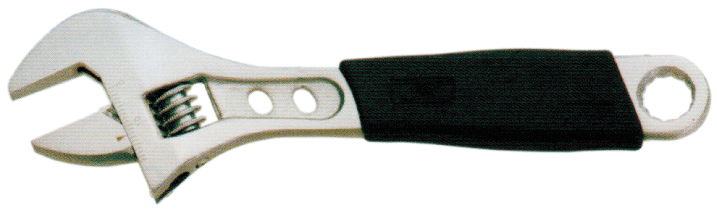

SOFTGRIP ADJUSTABLE WRENCH
CodeA (mm)B (mm)C (mm)D (mm)L (mm)
TCT-R1506.510.320.525.0150
TCT-R2007.812.526.031.5200
TCT-R2508.514.532.036.5250
TCT-R3009.717.737.042.5300
Cold extrusion forming technology and precise machining enable to make internal threaded parts functional with high enough torsion.
Ergonomic soft handles, made of elastic plastic material, comfortably and strong grip.
Laser printed scale at the mouth of adjustable wrenchs, easy for users to measure size of bolt/nut heads.
Mobile jaw drop-forged with Crv steel body heat treatment Jaw teeth induction quenched.
Nearly 40% lighter than comparable cast-iron models of the same size, Wxceeds Federal Specification No. GGG-651 type 1 class B.10

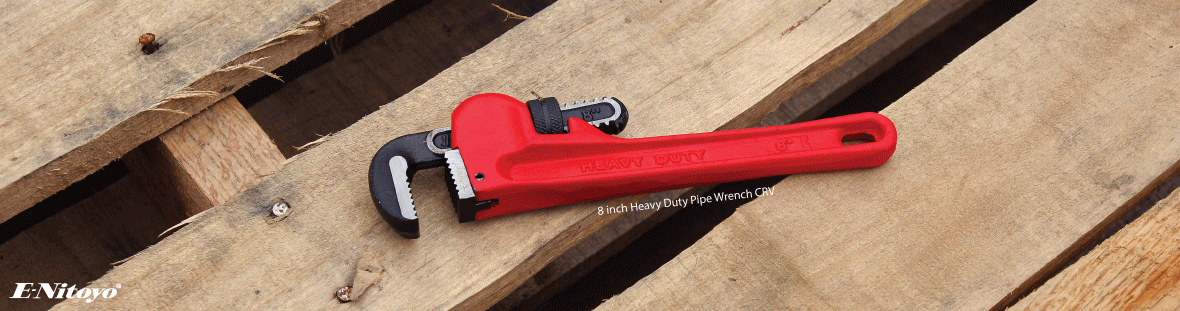

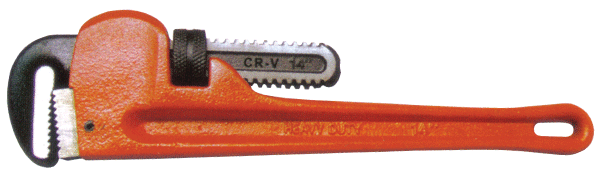

HEAVY DUTY PIPE WRENCH CRV
CodeSize(mm)
N01-PW066"30
N01-PW088"35
N01-PW1010"42
N01-PW1212"51
N01-PW1414"60
N01-PW1818"76
N01-PW2424"90
N01-PW3636"105
N01-PW4848"115
HEAVY DUTY PIPE WRENCH CRV
CodeSize(Inch-mm)
N01-PWA1010"1-1/2" - 49
N01-PWA1212"2" - 60
N01-PWA1414"2" - 60
N01-PWA1818"2-1/2" - 76
N01-PWA2424"3" - 90
N01-PWA3636"5" - 140
N01-PWA4848"6" - 166
