BIT / BIT HOLDER

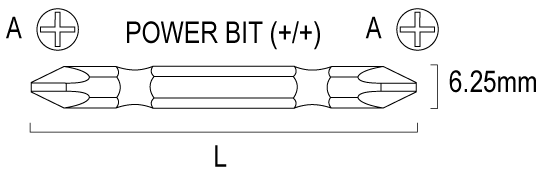

	POWER BIT ( + / + )
	Code	A	L (mm)
	N4-P+1X45	#1	45 mm
	N4-P+1X65	#1	65 mm
	N4-P+2X45	#2	45 mm
	N4-P+2X65	#2	65 mm
	N4-P+2X110	#2	110 mm
	N4-P+2X150	#2	150 mm
	N4-P+2X200	#2	200 mm
	N4-P+2X250	#2	250 mm
	N4-P+2X300	#2	300 mm

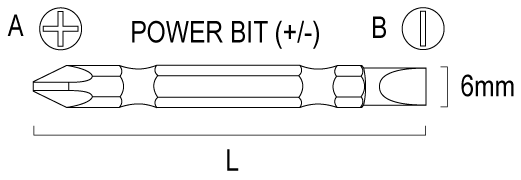

	POWER BIT ( + / - )
	Code	A - B	L (mm)
	N4-P-2X45	#2 - #6	45 mm
	N4-P-2X65	#2 - #6	65 mm
	N4-P-2X110	#2 - #6	110 mm

	IMPACT BIT
	Code	A	L (mm)
	N4-IB+2X36	#2	36 mm
	N4-IB+3X36	#3	36 mm
	N4-IB+2X80	#2	80 mm
	N4-IB+3X80	#3	80 mm

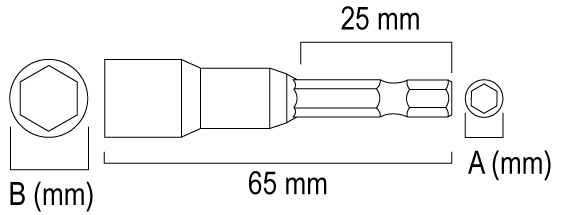

	MAGNETIC BIT HOLDER - MM SIZE
	Code	A (mm)	B (mm)
	N4-M-05	5 mm	11 mm
	N4-M-06	6 mm	11 mm
	N4-M-065	6.5 mm	13 mm
	N4-M-07	7 mm	13 mm
	N4-M-08	8 mm	13 mm
	N4-M-09	9 mm	14.5 mm
	N4-M-10	10 mm	14.5 mm
	N4-M-11	11 mm	16 mm
	N4-M-12	12 mm	17.5 mm
	N4-M-13	13 mm	17.5 mm
	N4-M-14	14 mm	20 mm
	N4-M-15	15 mm	20 mm
	N4-M-16	16 mm	21 mm
	N4-M-17	17 mm	22 mm

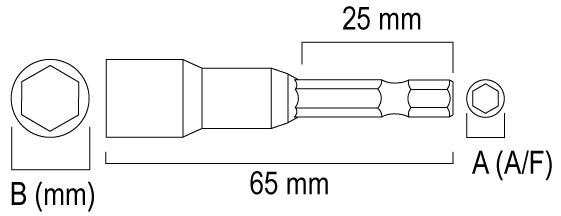

	MAGNETIC BIT HOLDER - INCH SIZE
	Code	A (A/F)	B (mm)
	N4-M-1/4	1/4"	13 mm
	N4-M-5/16	5/16"	13 mm
	N4-M-3/8	3/8"	14.5 mm
	N4-M-7/16	7/16"	16 mm
	N4-M-1/2	1/2"	17.5 mm

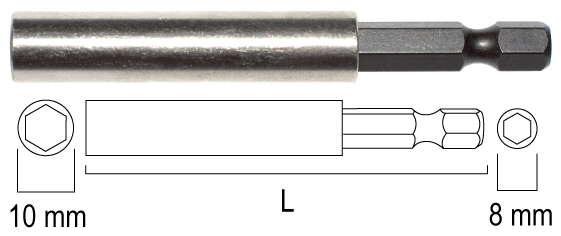

	MAGNETIC BIT HOLDER EXTENSION
	Code	L (mm)
	N4-MEXT-075	75 mm
	N4-MEXT-100	100 mm
