ELECTRIC / AIR POWERED TOOLS ATTANCHMENTS - DRILL SERIES > HSS JOBBER DRILL & HSS 1/2" REDUCE SHANK DRILL

Drill Diameter

The values indicated in the relevant dimensional standards apply in respect of the diameter of twist drills. Test Point: On the lands at the corners. (see Fig.1)

Fig. 1 Test point of the drill diameter - Testing equipment: micrometer.

Point Angle

Test Value: σ=118°; σ=135°

Test Point: At the cutting edges (see Fig.2)

Testing Equipment: Universal bevel protractor indicating measuring instruments.

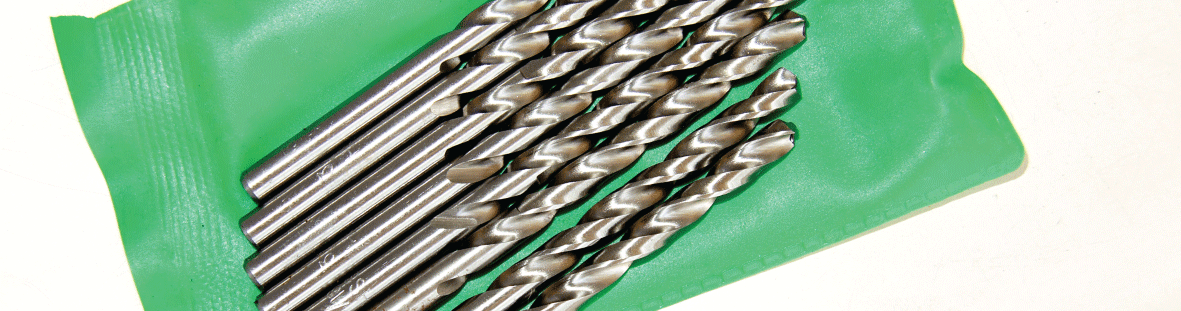

	HSS JOBBER DRILL (0.5 to 3.3mm)
	Code	Size (D = mm)
	MZHS-005	0.5
	MZHS-006	0.6
	MZHS-007	0.7
	MZHS-008	0.8
	MZHS-009	0.9
	MZHS-010	1.0
	MZHS-015	1.5
	MZHS-016	1.6
	MZHS-017	1.7
	MZHS-018	1.8
	MZHS-019	1.9
	MZHS-020	2.0
	MZHS-021	2.1
	MZHS-022	2.2
	MZHS-023	2.3
	MZHS-024	2.4
	MZHS-025	2.5
	MZHS-026	2.6
	MZHS-027	2.7
	MZHS-028	2.8
	MZHS-029	2.9
	MZHS-030	3.0
	MZHS-031	3.1
	MZHS-032	3.2
	MZHS-033	3.3


	HSS JOBBER DRILL (3.4 to 5.8mm)
	Code	Size (D = mm)
	MZHS-034	3.4
	MZHS-035	3.5
	MZHS-036	3.6
	MZHS-037	3.7
	MZHS-038	3.8
	MZHS-039	3.9
	MZHS-040	4.0
	MZHS-041	4.1
	MZHS-042	4.2
	MZHS-043	4.3
	MZHS-044	4.4
	MZHS-045	4.5
	MZHS-046	4.6
	MZHS-047	4.7
	MZHS-048	4.8
	MZHS-049	4.9
	MZHS-050	5.0
	MZHS-051	5.1
	MZHS-052	5.2
	MZHS-053	5.3
	MZHS-054	5.4
	MZHS-055	5.5
	MZHS-056	5.6
	MZHS-057	5.7
	MZHS-058	5.8


	HSS JOBBER DRILL (5.9 to 13.0mm)
	Code	Size (D = mm)
	MZHS-059	5.9
	MZHS-060	6.0
	MZHS-061	6.1
	MZHS-062	6.2
	MZHS-063	6.3
	MZHS-064	6.4
	MZHS-065	6.5
	MZHS-066	6.6
	MZHS-067	6.7
	MZHS-068	6.8
	MZHS-069	6.9
	MZHS-070	7.0
	MZHS-075	7.5
	MZHS-080	8.0
	MZHS-085	8.5
	MZHS-090	9.5
	MZHS-095	9.5
	MZHS-100	10.0
	MZHS-105	10.5
	MZHS-110	11.0
	MZHS-115	11.5
	MZHS-120	12.0
	MZHS-125	12.5
	MZHS-130	13.0


	HSS JOBBER DRILL (inch)
	Code	Size (D = inch)
	MZHS-A01	1/32"
	MZHS-A02	3/64"
	MZHS-A03	1/16"
	MZHS-A04	5/64"
	MZHS-A05	7/64"
	MZHS-A06	1/8"
	MZHS-A07	9/64"
	MZHS-A08	5/32"
	MZHS-A09	11/64"
	MZHS-A10	3/16"
	MZHS-A11	13/64"
	MZHS-A12	7/32"
	MZHS-A13	15/64"
	MZHS-A14	1/4"
	MZHS-A15	17/64"
	MZHS-A16	9/32"
	MZHS-A17	5/16"
	MZHS-A18	3/8"
	MZHS-A19	7/16"
	MZHS-A20	1/2"

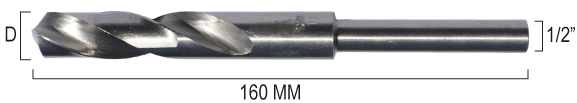

	HSS 1/2" REDUCE SHANK DRILL
	Code	Size (D = mm)
	MZHS-135	13.5
	MZHS-140	14.0
	MZHS-145	14.5
	MZHS-150	15.0
	MZHS-155	15.5
	MZHS-160	16.0
	MZHS-165	16.5
	MZHS-170	17.0
	MZHS-175	17.5
	MZHS-180	18.0

	HSS 1/2" REDUCE SHANK DRILL
	Code	Size (D = mm)
	MZHS-185	18.5
	MZHS-190	19.0
	MZHS-195	19.5
	MZHS-200	20.0
	MZHS-205	20.5
	MZHS-210	21.0
	MZHS-220	22.0
	MZHS-230	23.0
	MZHS-240	24.0
	MZHS-250	25.0

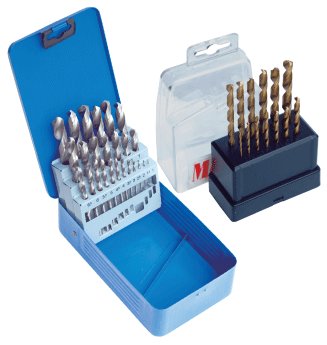

	HSS JOBBER DRILL SET (inch)
	Code	Size (D = inch)
	MZHS-S1	13pcs, 1/16" ~ 1/4"
	MZHS-S2	21pcs, 1/16" ~ 3/8"
	MZHS-S3	29pcs, 1/16" ~ 1/2"

	HSS JOBBER DRILL SET (mm)
	Code	Size (D = mm)
	MZHS-S4	13pcs, 1.5 ~6.5mm
	MZHS-S5	13pcs, 1.0 ~ 10.0mm
	MZHS-S6	25pcs, 1.0 ~ 13.0mm
	MZHS-S7	50pcs, 1.0 ~ 5.9mm
	MZHS-S6	41pcs, 6.0 ~ 10.0mm
