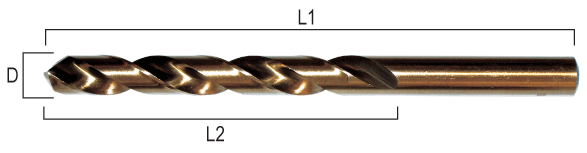

| COBALT DRILL (0.5~4.5mm) |
| Code | D(mm) | L1(mm) | L2(mm) |
| MZHS-S/S005 | 0.5 | 22 | 6 |
| MZHS-S/S006 | 0.6 | 24 | 7 |
| MZHS-S/S007 | 0.7 | 28 | 9 |
| MZHS-S/S008 | 0.8 | 30 | 10 |
| MZHS-S/S009 | 0.9 | 32 | 11 |
| MZHS-S/S010 | 1.0 | 34 | 12 |
| MZHS-S/S015 | 1.5 | 40 | 18 |
| MZHS-S/S016 | 1.6 | 43 | 20 |
| MZHS-S/S017 | 1.7 | 43 | 20 |
| MZHS-S/S018 | 1.8 | 46 | 22 |
| MZHS-S/S019 | 1.9 | 46 | 22 |
| MZHS-S/S020 | 2.0 | 49 | 24 |
| MZHS-S/S021 | 2.1 | 49 | 24 |
| MZHS-S/S022 | 2.2 | 53 | 27 |
| MZHS-S/S023 | 2.3 | 53 | 27 |
| MZHS-S/S024 | 2.4 | 57 | 30 |
| MZHS-S/S025 | 2.5 | 57 | 30 |
| MZHS-S/S026 | 2.6 | 57 | 30 |
| MZHS-S/S027 | 2.7 | 61 | 33 |
| MZHS-S/S028 | 2.8 | 61 | 33 |
| MZHS-S/S029 | 2.9 | 61 | 33 |
| MZHS-S/S030 | 3.0 | 61 | 33 |
| MZHS-S/S031 | 3.1 | 65 | 36 |
| MZHS-S/S032 | 3.2 | 65 | 36 |
| MZHS-S/S033 | 3.3 | 65 | 36 |
| MZHS-S/S034 | 3.4 | 70 | 39 |
| MZHS-S/S035 | 3.5 | 70 | 39 |
| MZHS-S/S036 | 3.6 | 70 | 39 |
| MZHS-S/S037 | 3.7 | 70 | 39 |
| MZHS-S/S038 | 3.8 | 75 | 43 |
| MZHS-S/S039 | 3.9 | 75 | 43 |
| MZHS-S/S040 | 4.0 | 75 | 43 |
| MZHS-S/S041 | 4.1 | 75 | 43 |
| MZHS-S/S042 | 4.2 | 75 | 43 |
| MZHS-S/S043 | 4.3 | 80 | 47 |
| MZHS-S/S044 | 4.4 | 80 | 47 |
| MZHS-S/S045 | 4.5 | 80 | 47 |
|
| COBALT DRILL (4.6~13mm) |
| Code | D(mm) | L1(mm) | L2(mm) |
| MZHS-S/S046 | 4.6 | 80 | 47 |
| MZHS-S/S047 | 4.7 | 80 | 47 |
| MZHS-S/S048 | 4.8 | 86 | 52 |
| MZHS-S/S049 | 4.9 | 86 | 52 |
| MZHS-S/S050 | 5.0 | 86 | 52 |
| MZHS-S/S051 | 5.1 | 86 | 52 |
| MZHS-S/S052 | 5.2 | 86 | 52 |
| MZHS-S/S053 | 5.3 | 86 | 52 |
| MZHS-S/S054 | 5.4 | 93 | 57 |
| MZHS-S/S055 | 5.5 | 93 | 57 |
| MZHS-S/S056 | 5.6 | 93 | 57 |
| MZHS-S/S057 | 5.7 | 93 | 57 |
| MZHS-S/S058 | 5.8 | 93 | 57 |
| MZHS-S/S059 | 5.9 | 93 | 57 |
| MZHS-S/S060 | 6.0 | 93 | 57 |
| MZHS-S/S061 | 6.1 | 101 | 63 |
| MZHS-S/S062 | 6.2 | 101 | 63 |
| MZHS-S/S063 | 6.3 | 101 | 63 |
| MZHS-S/S064 | 6.4 | 101 | 63 |
| MZHS-S/S065 | 6.5 | 101 | 63 |
| MZHS-S/S066 | 6.6 | 101 | 63 |
| MZHS-S/S067 | 6.7 | 101 | 63 |
| MZHS-S/S068 | 6.8 | 109 | 69 |
| MZHS-S/S069 | 6.9 | 109 | 69 |
| MZHS-S/S070 | 7.0 | 109 | 69 |
| MZHS-S/S075 | 7.5 | 109 | 69 |
| MZHS-S/S080 | 8.0 | 117 | 75 |
| MZHS-S/S085 | 8.5 | 117 | 75 |
| MZHS-S/S090 | 9.0 | 125 | 81 |
| MZHS-S/S095 | 9.5 | 125 | 81 |
| MZHS-S/S100 | 10.0 | 133 | 87 |
| MZHS-S/S105 | 10.5 | 133 | 87 |
| MZHS-S/S110 | 11.0 | 142 | 94 |
| MZHS-S/S115 | 11.5 | 142 | 94 |
| MZHS-S/S120 | 12.0 | 151 | 101 |
| MZHS-S/S125 | 12.5 | 151 | 101 |
| MZHS-S/S130 | 13.0 | 151 | 101 |
|
| COBALT DRILL (inch) |
| Code | D(mm) | L1(mm) | L2(mm) |
| MZHS-S/SA01 | 1/32" | 30 | 10 |
| MZHS-S/SA02 | 3/64" | 38 | 16 |
| MZHS-S/SA03 | 1/16" | 40 | 18 |
| MZHS-S/SA04 | 5/64" | 49 | 24 |
| MZHS-S/SA05 | 7/64" | 61 | 33 |
| MZHS-S/SA06 | 1/8" | 61 | 33 |
| MZHS-S/SA07 | 9/64" | 70 | 39 |
| MZHS-S/SA08 | 5/32" | 75 | 43 |
| MZHS-S/SA09 | 11/64" | 80 | 47 |
| MZHS-S/SA10 | 3/16" | 86 | 52 |
| MZHS-S/SA11 | 13/64" | 86 | 52 |
| MZHS-S/SA12 | 7/32" | 93 | 57 |
| MZHS-S/SA13 | 15/64" | 93 | 57 |
| MZHS-S/SA14 | 1/4" | 101 | 63 |
| MZHS-S/SA15 | 17/64" | 109 | 69 |
| MZHS-S/SA16 | 9/32" | 109 | 69 |
| MZHS-S/SA17 | 5/16" | 117 | 75 |
| MZHS-S/SA18 | 3/8" | 125 | 81 |
| MZHS-S/SA19 | 7/16" | 142 | 94 |
| MZHS-S/SA20 | 1/2" | 151 | 101 |
|

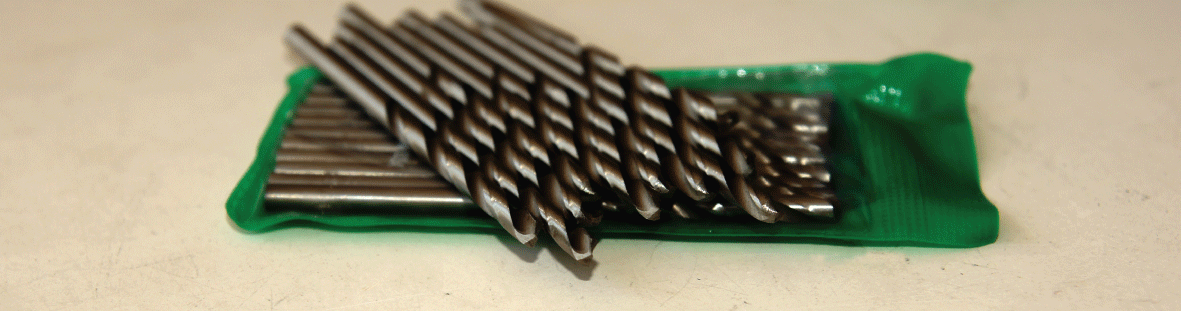

| COBALT DRILL SET |
| Code | Contain |
| MZHS-SS06 | 1 ~ 13mm, 25pcs Set | |
|
